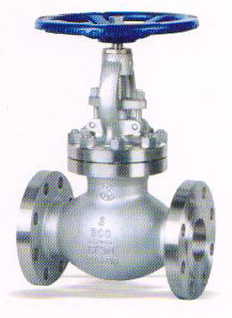

J41W-150Lb不銹鋼美標(biāo)截止閥連接尺寸和外形尺寸（mm)
|
公稱通徑NPS
Norminal diameter |
單位
Unit |
L |
D |
C |
G |
T |
n-Ф |
W |
H |
|
in |
mm |
|
1/2〞 |
15 |
mm |
108 |
89 |
60.5 |
35 |
12 |
4-15 |
125 |
169 |
|
in |
4.25 |
3.5 |
2.38 |
1.38 |
0.47 |
4-0.59 |
4.92 |
6.65 |
|
3/4〞 |
20 |
mm |
117 |
98 |
70 |
43 |
12 |
4-15 |
125 |
180 |
|
in |
4.61 |
3.86 |
2.76 |
1.69 |
0.47 |
4-0.59 |
4.92 |
7.08 |
|
1〞 |
25 |
mm |
127 |
108 |
79.5 |
51 |
12 |
4-15 |
125 |
190 |
|
in |
5 |
4.25 |
3.13 |
2 |
0.47 |
4-0.59 |
4.92 |
7.48 |
|
11/2〞 |
40 |
mm |
165 |
127 |
98.5 |
73 |
14.3 |
4-16 |
180 |
347 |
|
in |
6.5 |
5 |
3.88 |
2.88 |
0.56 |
4-0.62 |
7.09 |
13.66 |
|
2〞 |
50 |
mm |
178 |
152 |
120.5 |
92 |
15.9 |
4-19 |
180 |
365 |
|
in |
7 |
6 |
4.75 |
3.62 |
0.625 |
4-0.75 |
7.09 |
14 |
|
21/2〞 |
65 |
mm |
190 |
178 |
139.5 |
105 |
17.5 |
4-19 |
240 |
381 |
|
in |
7.5 |
7 |
5.50 |
4.12 |
0.69 |
4-0.75 |
9.45 |
15.00 |
|
3〞 |
80 |
mm |
203 |
190 |
152.4 |
127 |
19.1 |
4-19 |
280 |
413 |
|
in |
8 |
7.5 |
6 |
5 |
0.75 |
4-0.75 |
11.02 |
16.25 |
|
4〞 |
100 |
mm |
229 |
229 |
190.5 |
157 |
23.9 |
8-19 |
280 |
500 |
|
in |
9 |
9 |
7.5 |
6.19 |
0.94 |
8-0.75 |
11.02 |
19.68 |
|
6〞 |
150 |
mm |
394 |
279 |
241.5 |
216 |
26 |
8-22 |
360 |
656 |
|
in |
15.5 |
11.00 |
9.50 |
8.5 |
1.02 |
8-0.88 |
14.14 |
22.25 |
|
8〞 |
200 |
mm |
457 |
343 |
298.5 |
270 |
29 |
8-22 |
450 |
660 |
|
in |
18.00 |
13.50 |
11.75 |
10.62 |
1.12 |
8-0.88 |
17.75 |
26.00 | |
